Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE

Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE

Großes Bild :  Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE

Produktdetails:
Herkunftsort: Anhui
Markenname: Innovo Bochen
Zertifizierung: CE
Modellnummer: SFC-1500/1700/1900
Zahlung und Versand AGB:
Min Bestellmenge: 1 Set
Preis: 65000-85000USD
Verpackung Informationen: Vakuumbeutel
Lieferzeit: 45 Tage
Versorgungsmaterial-Fähigkeit: 30 Sätze pro Monat
Kontakt

Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE

Beschreibung
Fahrtyp: Elektrischer Weg Dicke der Dicke der Papierdicke: 300 GSM-10mm-Karton und Flöte
Linienarbeitsgeschwindigkeit (m/min): 150-160 FOB-Zahlungspreis: 80000 USD
Mindestblattgröße: 1500: 40*45 cm 1700: 45*45 cm Laminierungstyp: Karton+Wellpolter+Wellblech
Maximale Materialgröße: 1500*1500 mm und 1700*1700 mm Rollenrollengröße: Aniloxwalzen mit einem Durchmesser von 160 mm
Einstellung: Intelligent
Hervorheben:

Electrical Driving Sheet To Sheet Laminating Machine

,

300gsm-10mm Cardboard Corrugated Paper Laminator

,

B E FLUTE Cardboard Laminating Machine

5ply Sheet To Sheet Laminating Machine for Corrugated Paper with Automatic Servo Control and Correction
Performance Characteristics
  • Laminates combinations of two corrugated boards and any top sheet to produce 2-layer, 3ply, 4ply, 5ply, 7ply products
  • Handles various laminating types: corrugated + corrugated + cardboard, corrugated + cardboard, cardboard + gray board + cardboard, etc.
  • Automatic paper detection with servo correction technology for precise top-bottom paper alignment
  • Imported servo motor control system with Japan NITTA suction belt and lead edge feeding
  • Multifunctional rack accommodates curved corrugated materials
  • 160mm stainless steel glue roller with fine anilox grinding for even coating
  • Dual-use lifting platform with pre-stacker structure
  • Polyethylene-coated rollers for automatic glue release
  • Circulating glue system reduces waste and stabilizes adhesion
  • One-touch machine adjustment via paper size input
  • Integrated video monitoring system
Technical Specifications
Model SFC1500 SFC1700 SFC1900 SFC2200
Max size 1500×1500mm 1700×1700mm 1900×1900mm 2200×2100mm
Min size 360×380mm 380×400mm 450×450mm 500×500mm
Top Paper 120-800g
Bottom paper 300gsm-10mm Corrugated board and cardboard
Max speed 150m/min
Power 22kw 25kw 27KW 30KW
Stick accuracy ±1-2.5mm
Structural Features
  • Advanced transmission control system with automatic paper size adjustment
  • Computerized high-speed fitting (up to 12,000 pieces/hour)
  • Chuanliu-type air supply head with multiple nozzle sets
  • Feida Block system for low stack cardboard handling
  • Multiple electric eyes for precise paper alignment
  • Full-function electronic control with HMI and PLC monitoring
  • Automatic glue replenishment with recycling system
Key Components
1. Bottom Paper Feeding

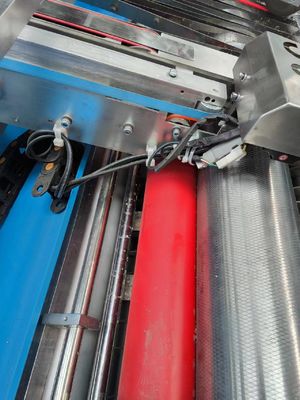

Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 0

Double lead edge feeding system ensures smooth bottom paper feeding and accommodates cardboard feeding.

2. Top Sheet Feeding Mechanism

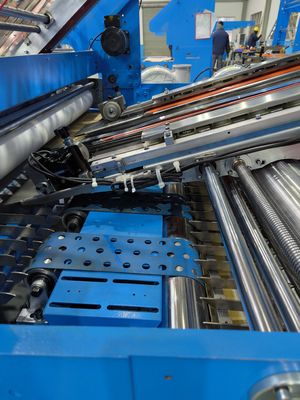

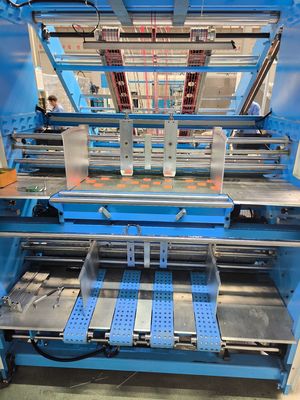

Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 1 Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 2

Adjustable paper lifting and feeding nozzle system with Becker pump for smooth operation with various paper thicknesses.

3. Electrical System
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 3

CE-compliant design with HMI and PLC interface displaying operational data, warnings, and error detection.

4. Pre-Stack Part
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 4

Pre-pile system with touch screen configuration for efficient setup and orientation.

5. Transmission System
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 5 Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 6

Gates synchronous belt with SKF bearings for stable operation, featuring easy adjustment of pressure rollers and glue application.

6. Positioning System & Glue Roller
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 7

Multiple photoelectric sensors control servo motors for accurate top-bottom paper alignment. Features stainless steel glue roller for even coating.

7. Touch Screen Operation
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 8

Centralized touch screen control with high-resolution interface for real-time monitoring and troubleshooting.

Optional Features
  • Leading Edge Feeding System (for large/thick sheets)
  • Shaftless Servo Feeder (for long top sheets)
  • Big Suction System (for multi-layer products)
  • Automatic Lubrication System (extends bearing life)
  • Video Monitoring System (remote operation monitoring)
Electrical Driving 5ply Sheet To Sheet Laminating Machine for 300gsm-10mm Cardboard and B E FLUTE 9
