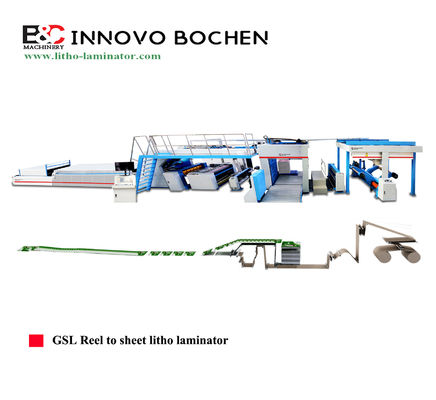

Reel To Sheet Bottom Paper Roll Feeding Automatic Flute Litho Laminator Machine With Flip Flop Stacker Line

Reel To Sheet Bottom Paper Roll Feeding Automatic Flute Litho Laminator Machine With Flip Flop Stacker Line
Reel To Sheet Bottom Paper Roll Feeding Automatic Flute Litho Laminator Machine With Flip Flop Stacker Line
Reel To Sheet Bottom Paper Roll Feeding Automatic Flute Litho Laminator Machine With Flip Flop Stacker Line Reel To Sheet Bottom Paper Roll Feeding Automatic Flute Litho Laminator Machine With Flip Flop Stacker Line Reel To Sheet Bottom Paper Roll Feeding Automatic Flute Litho Laminator Machine With Flip Flop Stacker Line Reel To Sheet Bottom Paper Roll Feeding Automatic Flute Litho Laminator Machine With Flip Flop Stacker Line Reel To Sheet Bottom Paper Roll Feeding Automatic Flute Litho Laminator Machine With Flip Flop Stacker Line

Großes Bild :  Reel To Sheet Bottom Paper Roll Feeding Automatic Flute Litho Laminator Machine With Flip Flop Stacker Line

Produktdetails:
Herkunftsort: CHINA
Markenname: INNOVO BC
Zertifizierung: CE
Modellnummer: 1450/1650
Zahlung und Versand AGB:
Min Bestellmenge: 1 Set
Preis: 350000-450000USD
Verpackung Informationen: Vakuumbeutel
Lieferzeit: 60-90 Tage
Zahlungsbedingungen: L/c, t/t
Versorgungsmaterial-Fähigkeit: 1 SET/MONTH
Kontakt

Reel To Sheet Bottom Paper Roll Feeding Automatic Flute Litho Laminator Machine With Flip Flop Stacker Line

Beschreibung
Maximale Breite: 1450 mm Min Width: 450 mm
Maximale Papiergröße: 1450*1450 mm Min Papiergröße: 450*450 mm
Lamellierende Genauigkeit: ± 1 mm Maximale Liniengeschwindigkeit: 150 m/min
Genauigkeit beim Querschneiden: ± 1 mm
Hervorheben:

1450mm Max Width Automatic Flute Laminator Machine

,

±1mm Laminating Accuracy Flute Litho Laminator

,

200m/min Max Line Speed Corrugated Box Packaging Machine

Reel To Sheet Bottom Paper Roll Feeding Flute Litho Laminator With Flip Flop Stacker Line
High-Speed Corrugated Box Packaging Solution (150m/min)
Reel To Sheet Bottom Paper Roll Feeding Automatic Flute Litho Laminator Machine With Flip Flop Stacker Line 0
Technical Specifications
Model 1450 1650
Max width 1450mm 1650mm
Min width 450mm 500mm
Max paper size 1450*1450mm 1650*1650mm
Min paper size 450*450mm 500*500mm
Laminating accuracy ±1mm ±1mm
Max line speed 200m/min 200m/min
Cross cutting accuracy ±1mm ±1mm
Max collection speed 18000pcs/h (E flute)
16000pcs/h (B flute)		 18000pcs/h (E flute)
16000pcs/h (B flute)
Max collection height 1800mm (includes pallet) 1800mm (includes pallet)
Key Components & Features
1. Hydraulic Mill Roll Stand
  • Maximum paper roll diameter: 1500mm
  • Maximum paper roll weight: 4500kg
  • Robust design with full hydraulic drive for stable, reliable operation
  • Expansion chip prevents damage to paper core
  • Pneumatic multi-point brake control maintains constant paper roll tension
2. Automatic Splicer Machine
  • Maximum paper join width: 1450mm/1650mm
  • Maximum rolling paper diameter: 1500mm
  • Minimum resistance: 3n/mm
  • Tension control range: 10-100kgf
  • PLC control system for low failure rate and high machine stability
3. Corrugated Traction System
  • Swing roller automatically adjusts corrugated tension
  • Adjustable pressure roller gap for different corrugated types
  • Frequency reduction reducer drive
  • Point control for convenient paper threading
4. Underground/Ground Conveyor
  • Facilitates paper head transportation during threading
  • Belt running partial devices on both sides of dynamic roller
5. Bottom Sheet Aligner System
  • High-precision aligner ensures perfect fit accuracy
6. Corrugated Traction Glue Machine
  • Circulating glue system reduces glue loss and stabilizes adhesion
  • Compatible with white glue or starch glue
  • Stainless steel gluing roller with dynamic balance correction
7. Servo Sheeter
  • Synchronous servo cutting with color marking detection
  • Imported servo system and spiral blade
  • Precision positioning and tailoring

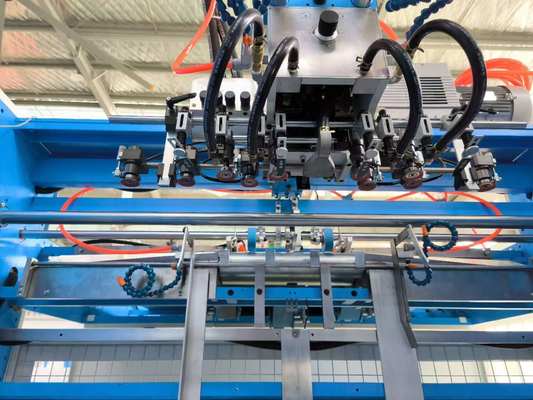

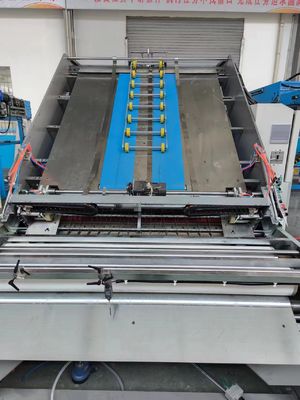

8. Automatic Flute Laminator
  • Maximum line speed: 200m/min
  • High-speed laminating without secondary corrugated positioning
  • Servo positioning ensures high accuracy
  • Non-stop feeding and pre-stacking
  • Intelligent glue volume and roller gap adjustment
  • Top sheet aligner system ensures side accuracy
  • Overlap feeding mode prevents paper jams

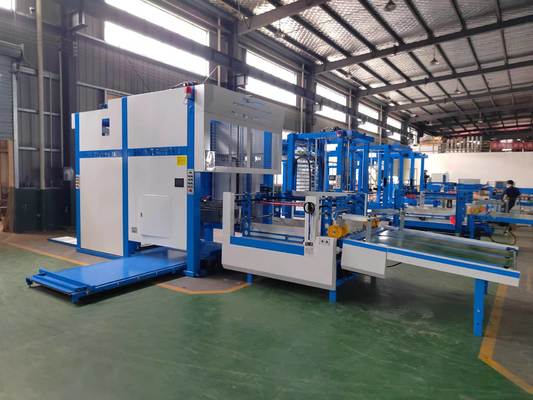

9. Automatic Flip Flop Stacker
  • Handles 10000-12000 sheets/hour high-speed lamination
  • Color surface remains completely contact-free and undamaged
  • Center-stacked cardboard for stable paper movement
  • Lateral movement of small stacks for convenient laminating and transport
  • Fully automatic stacking, flipping, and collection
  • Forward/reverse stacking prevents cardboard warping
  • Neat stacking improves product quality
  • Reduces labor requirements and intensity
  • Single-pallet intelligent multi-stack stacking saves space
  • Automatic unstacking and pallet placement
